The EC Standard Race Mower Front Axle meets the 40″ rule with a 7″ Van-K wheels (not included) and EC Front brakes (not included) in most organizations, clubs, and allowed classes.

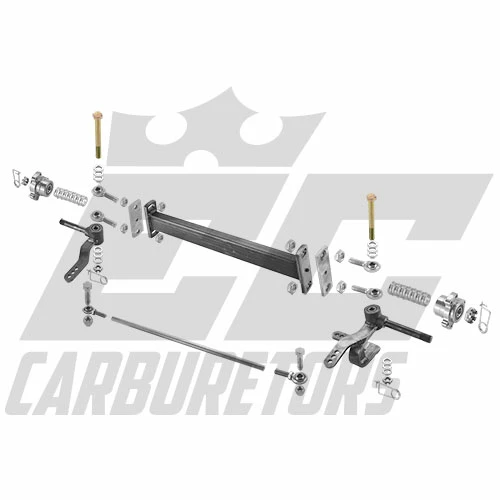

The standard axle uses a straight steel beam that is designed to fit the prepared class using stock lawnmower frames. The EC Front axle is fully adjustable using the same technology found in racing go-karts. You can make easy adjustments to camber, caster, toe, and Ackerman.

We use 1/2 diameter kingpin bolts on roller bearings. The spindle axle and kingpin housing are forged together from high strength alloy steel. Front spindles are not keyed for front brakes.
