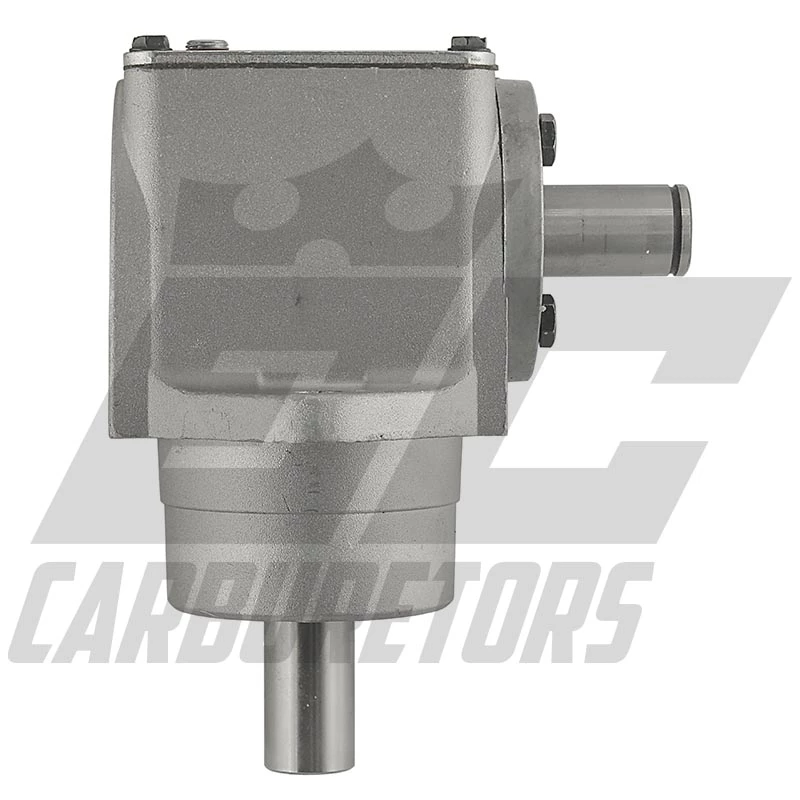

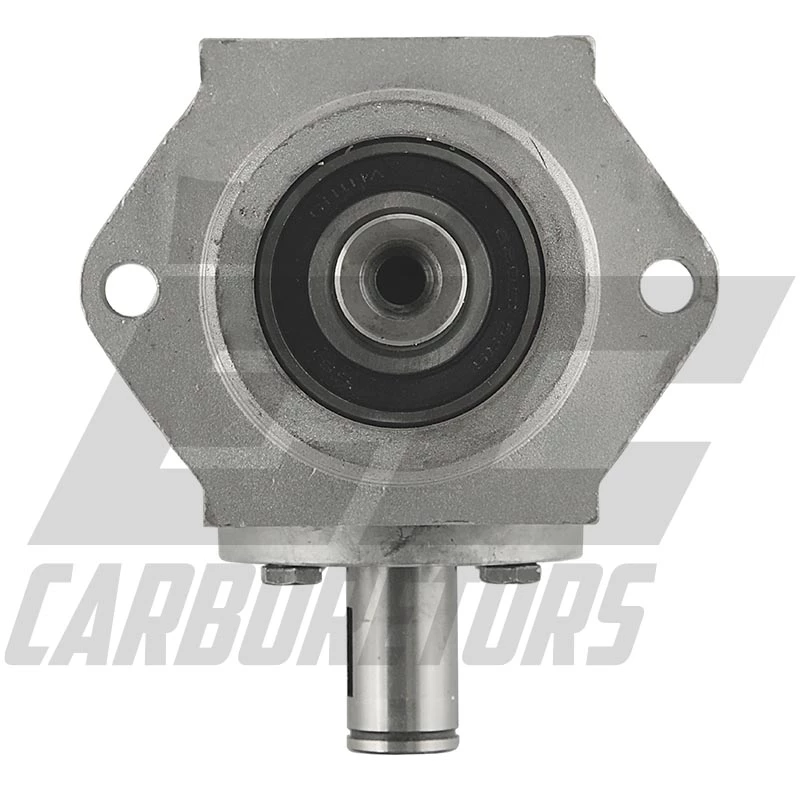

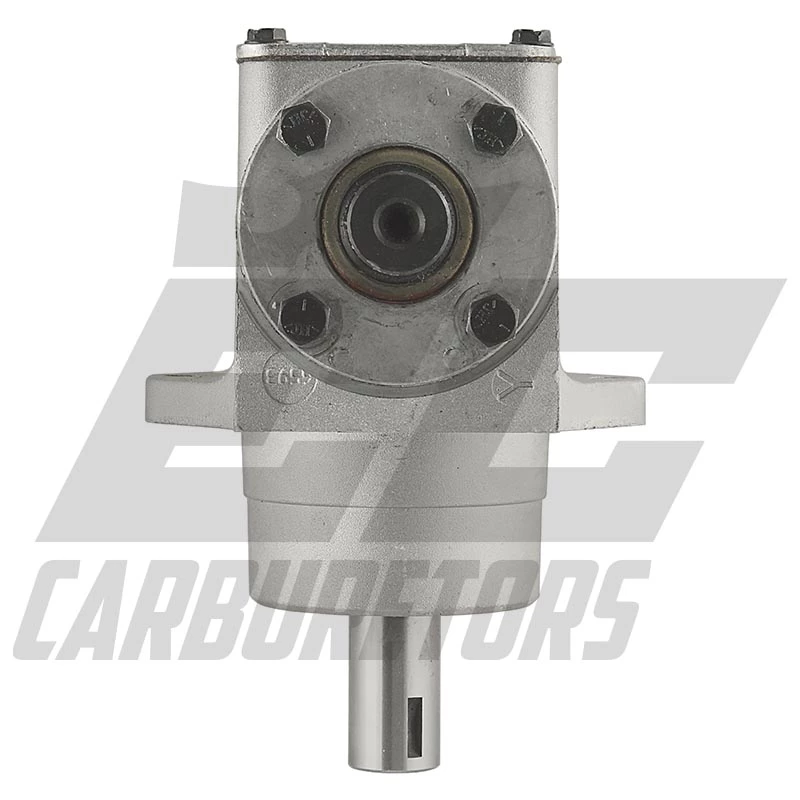

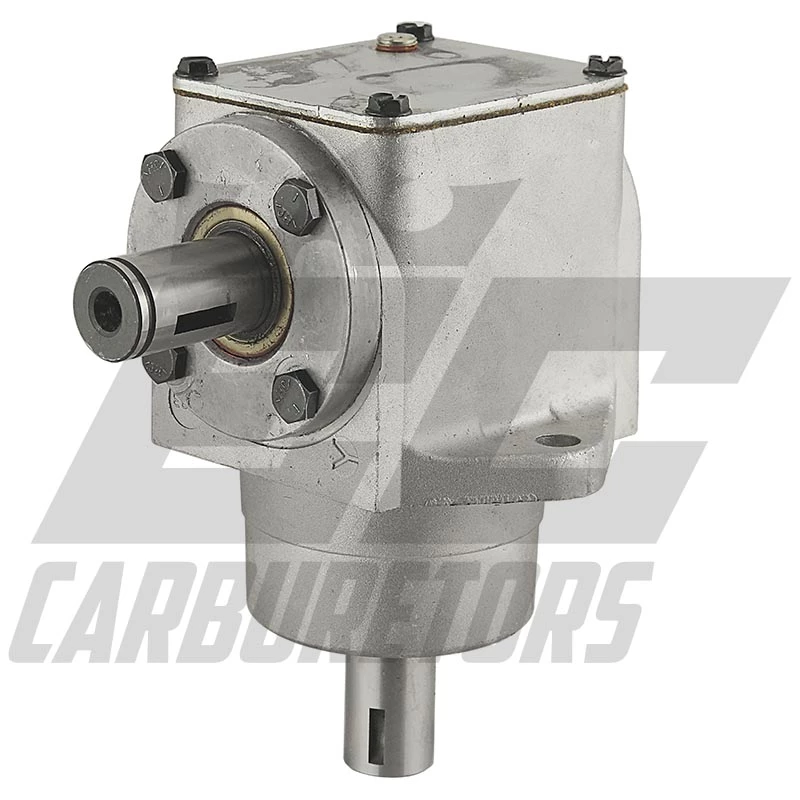

EC Carburetors 90-Degree Right Angle Gearbox For Race Mowers

794111A 90В° Right Angle Gearbox is preferred by all racers in the FXT(Outlaw Twin) and FXS(Outlaw single) Classes when going from a vertical shaft engine to the horizontal rear axle.

This is a much stronger set-up and requires less maintenance than a 700 series or similar multi-gear transmission. By reducing the number of moving parts and keeping things simple, this gearbox is the go-to for any build where rules allow. To get the most of this gearbox, we highly recommend using the 794-GBSK with a longer output shaft and support bearing that includes a weldable mounting plate.

Input shaft 7/8″

Output shaft 7/8″

WARNING!

There is no warranty on this gearbox of any kind. You are buying at your own risk!

This is a standard OE equipment component. Its intention was never racing and using those applications; you take the risk of component failure. These gearboxes were designed with maximum horsepower ratings of 10-13hp and static torque of 100ft/lbs with a maximum input speed of 3600rpms for direct driven lawnmower blades.
