EC Carburetors Alfano 6 Karting Data Acquisition System – Gauge Only

Alfano presents its new Alfano 6 data acquisition system. From design to production, the Alfano 6 has been created for ease of use that surprises you. Technology and reliability are combined to satisfy amateurs to professional drivers.

Features of Alfano 6: Alfano 6 captures at the same time three groups of GPS satellite systems(unique in the sector); American NAVSTAR – Russian GLONASS – European GALILEO new, for accuracy of lap times, speed, and trajectory never reached before.

The Alfano 6 has a database with more than 2500 circuits in memory. Use the Alfano App regularly to update your Alfano 6 and benefit from an increasingly enriched database.

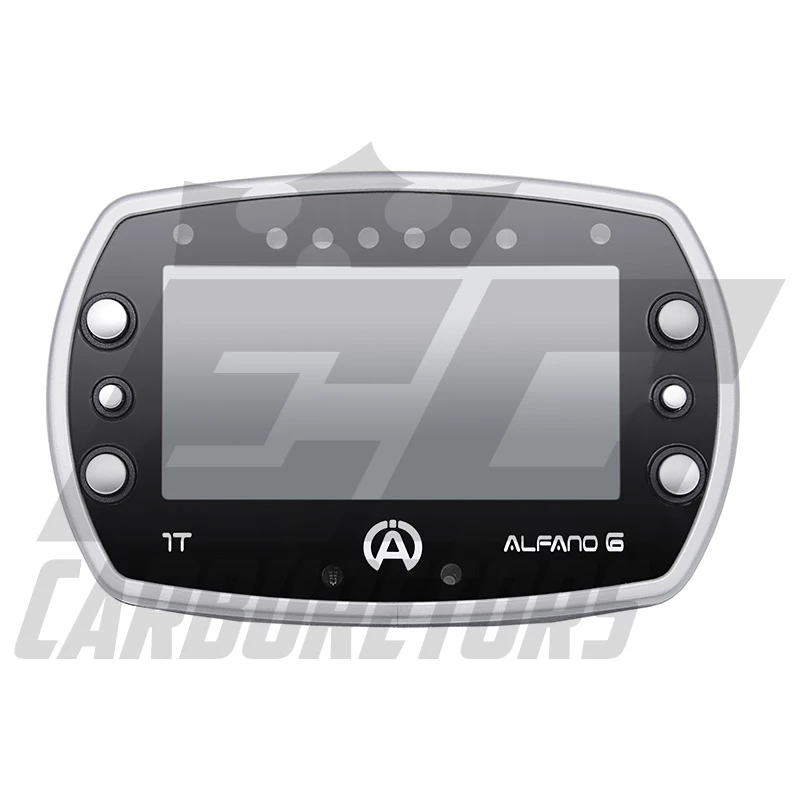

With its 268×128 pixel display, you can monitor all information clearly.

The Alfano 6’s display has a 6-color backlight with three brightness levels. The Alfano 6 has an ambient light sensor that will activate the backlight in case of a lack of visibility on the screen.

You can choose up to 5 race displays (1 default and 4 to customize according to your choice) to adapt the reading of acquired data such as lap times, split times, temperatures, speed, gear engaged, and more…

Alfano 6 is equipped with eight individually configurable LEDs, with the possibility of choosing the color and the activation values. You can activate the 6 LEDS in the center of the Alfano 6 for the engine speed (RPM), exhaust temperature, delta lap time, or delta intermediate time. The two external LEDs are configurable for temperature alarms.

Alfano 6 is equipped with Bluetooth communication for downloading data and updating the Alfano 6. The Bluetooth activates with a single press of the small button on the right.

Alfano 6 is equipped with a high-capacity rechargeable lithium-ion battery. The Alfano 6 can be connected to an extra external battery (optional).

Alfano 6 Features:

• Compatible with Pro3 Evo sensors.
• GPS: Navstar – US, Glonass – RU, Galileo – EU
• Bluetooth: PC, Android, iOS
• Screen: 268×128 pixels
• Backlight: Brightness, Six colors
• Tracks database: 2.527 currently
• Power supply: Lithium Ion battery, provided with USB battery charger and cable A4510

Cables and Accessories are Sold Separately.

Alfano 6 Manual

Alfano 6 Flyer
