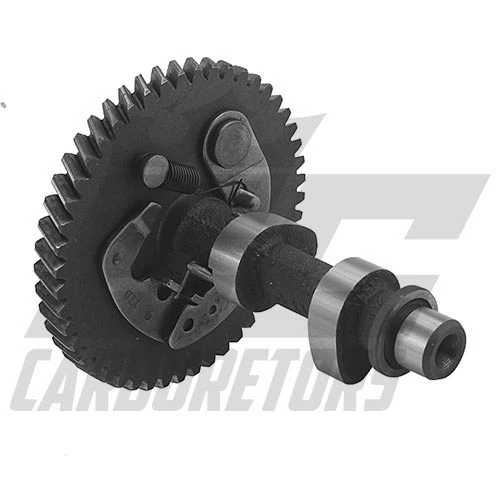

EC Carburetors DynoCams 315-CL Cam For Honda/Clone/Hemi Predator

The 315 lobe design is the next step above the proven 308. With slightly more lift and increased duration, the 315 will make more top end power for an OHV modified engine. This cam requires an upgraded spring package, billet rod, and billet flywheel. The Lobes on this Cam are Welded for extra durability.

Cam Specs:

Engine: 196cc OHV Clone/212 Hemi/Tillotson 196/212/225
Recommended Class: Open Modified
Target (MAX) RPM: 9000
Spring Pressure (In / Ex): 36 lbs
Valve Lash (IN/EX): .003.”

Ignition Timing: 34 Deg BTDC

INTAKE LIFT: .3135
Dur @ .050″: 249.65 Deg.
C/L: 108 ATDC

EXHAUST LIFT: .3135
DUR @ .050″: 253.40 Deg
C/L: 108 BTDC
