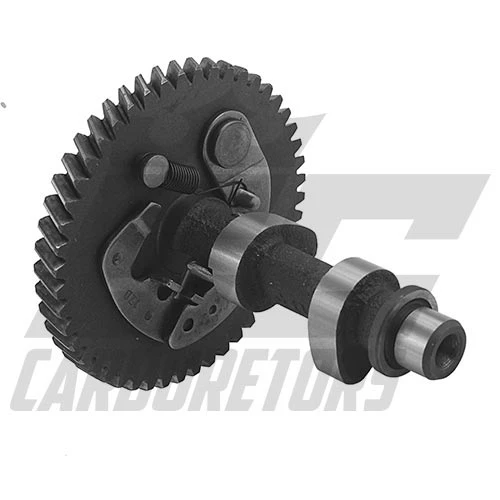

EC Carburetors DynoCams CL-335 Cam For Honda/Clone/Hemi Predator

The 335 has a big duration with a lower lift so it can be used in large cubic-inch OHV engines where valve-to-piston clearances are minimal. This cam requires an upgraded spring package, a billet rod, and a billet flywheel.

The Lobes on this Cam are Welded.

Specs

Recommended Class:Modified

Target (MAX) RPM: 8500-9000

Spring Pressure (In / Ex): 36lbs minimum(Spring Pressure depends on valve train weight and rocker ratio)

Valve Lash (In/Ex): .003″

Ignition Timing: 36 Deg BTDC

Profile

Intake

Open: 55.20 BTDC

Close: 95.75 ABDC

Lift: .334″

C/L: 108.0 ATDC

DUR @ 50: 259.75 Deg

Exhaust

Open: 96.65 BBDC

Close: 60.70 ATDC

Lift: .334″

C/L: 108.0 BTDC

DUR @ 50: 264.70 Deg
