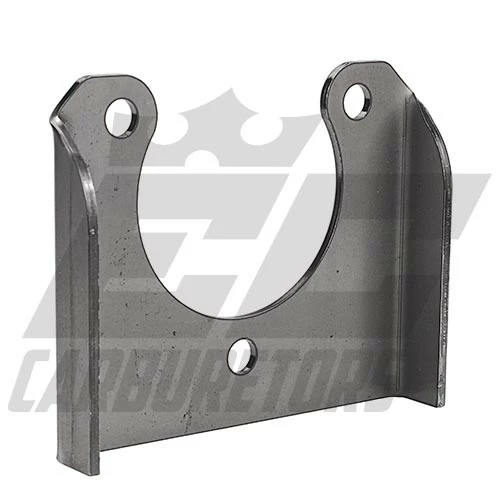

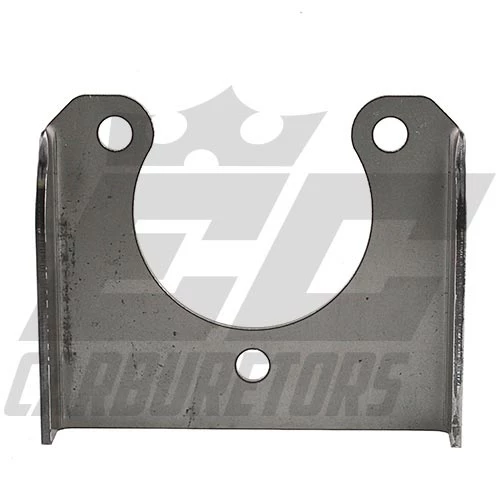

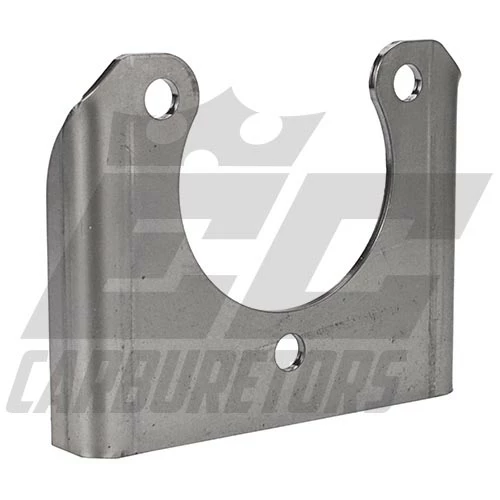

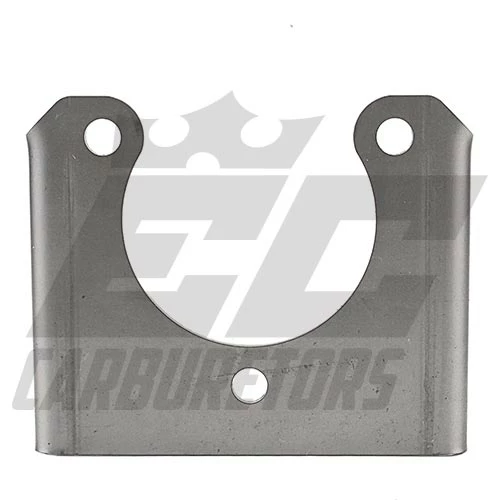

1-1/4 C-Channel Weldment for Rear Axle Assemblies.

Our Rear Bearing Hanger or Weldment is a model after our Gemini go-kart chassis and other racing go-kart frames. These bearing hangers are much stronger and more stable than flat plate weldments, making them ideal for racing applications or heavier small engine vehicles. We also carry a taller version,n part number 3511. Now we created a taller version for racing lawnmowers and other custom chassis builds. The taller weldment can help to further lower the frame by raising the axle location.

Weldment Specs:

Total Height 3.875″

Bottom Bolt to Bottom Weldment 0.75″

Width 4.75″

Depth 1.375″

Bolt Circle 3-9/16″
