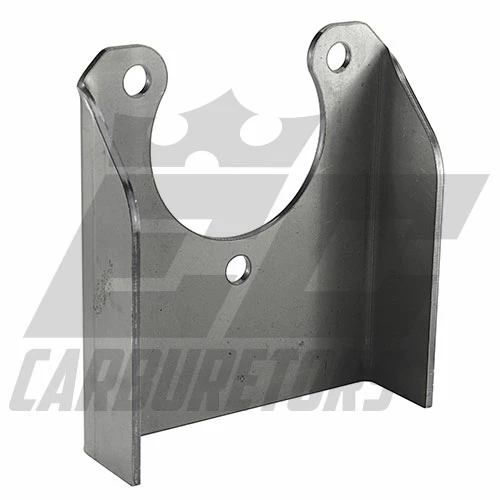

1-1/4 C-Channel Weldment for Rear Axle Assemblies.

Our Rear Bearing Hanger or Weldment is a model after our Gemini go-kart chassis and much other racing go-kart frame. These bearing hangers are much stronger and more stable than flat plate weldments, making them ideal for racing applications or heavier small engine vehicles. We created a taller version for racing lawnmowers, and other custom chassis builds. The taller weldment can help to further lower the frame by raising the axle location. We also carry a shorter version, part number 3510.

Weldment Specs:

Total Height 5.125″

Bottom Bolt to Bottom Weldment 2″

Width 4.75″

Depth 1.375″

Bolt Circle 3-9/16″
