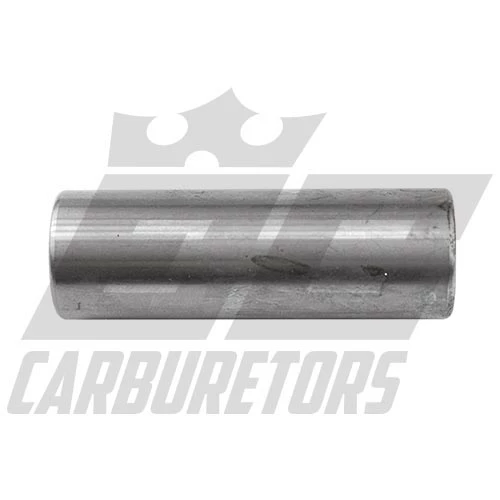

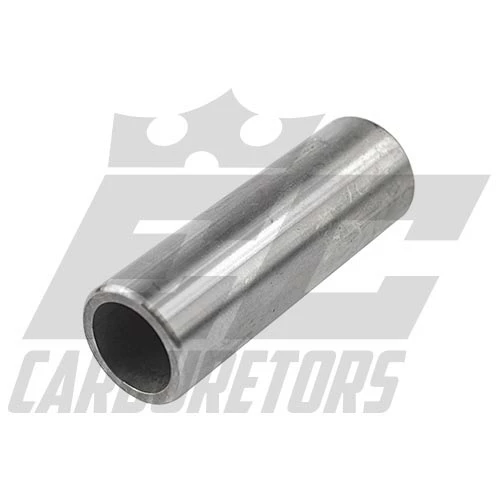

The Clone Piston Pin is a full floating wrist pin common in many clone engines.

This is the OEM Replacement Clone Piston Pin for Most 196 6.5hp Clones, 212 Predators, Honda GX200, Tillotson 196R, and Tillotson 212R Engines. This wrist pin does not fit the Ducar/Tillotson 212E and 212EE or Tillotson 225 Engines. Check your wrist pin dimensions before ordering.

Wrist Pin Specs:

– 54mm long

– 18mm OD

– 14mm ID

– 2mm wall thickness

– Avg Weight 45g

AKRA 2020 Rules for Wrist Pins

Overall length wrist pin 2.100″ min, inside diameter .550″ max.

NKA 2020 Rules for Wrist Pins

40.4.35: Wrist Pin Dimensions

40.4.35.1: Wrist pin inside diameter: .555″ maximum

40.4.35.2: Wrist pin outside diameter: .707″ +/-.005″

40.4.35.3: Wrist pin length: 2.100″-2.200″
